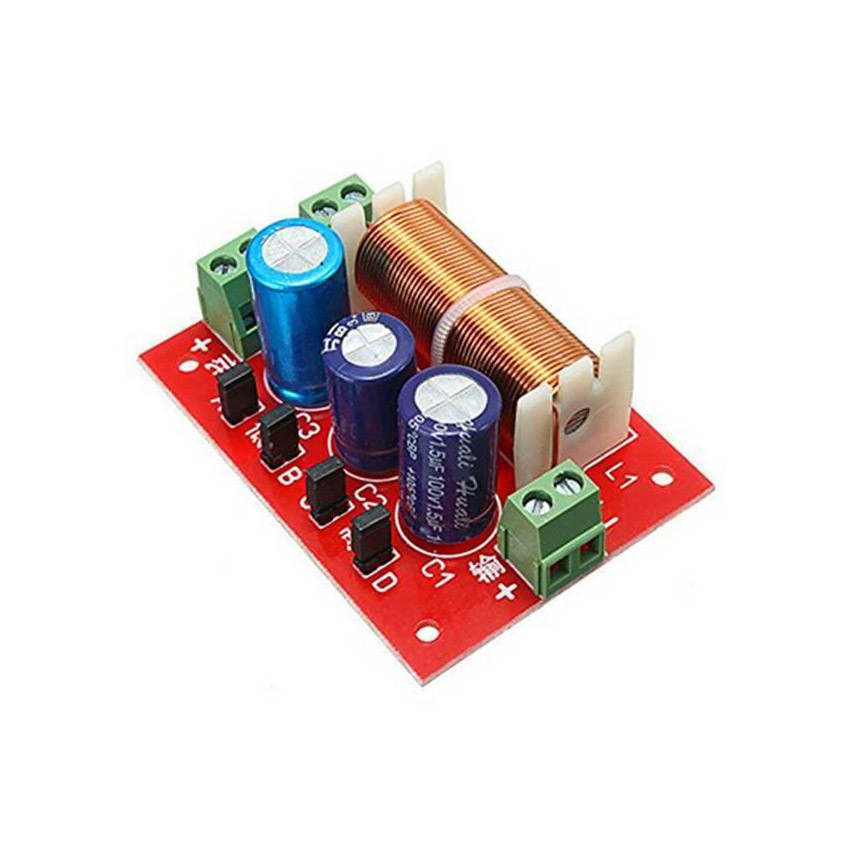

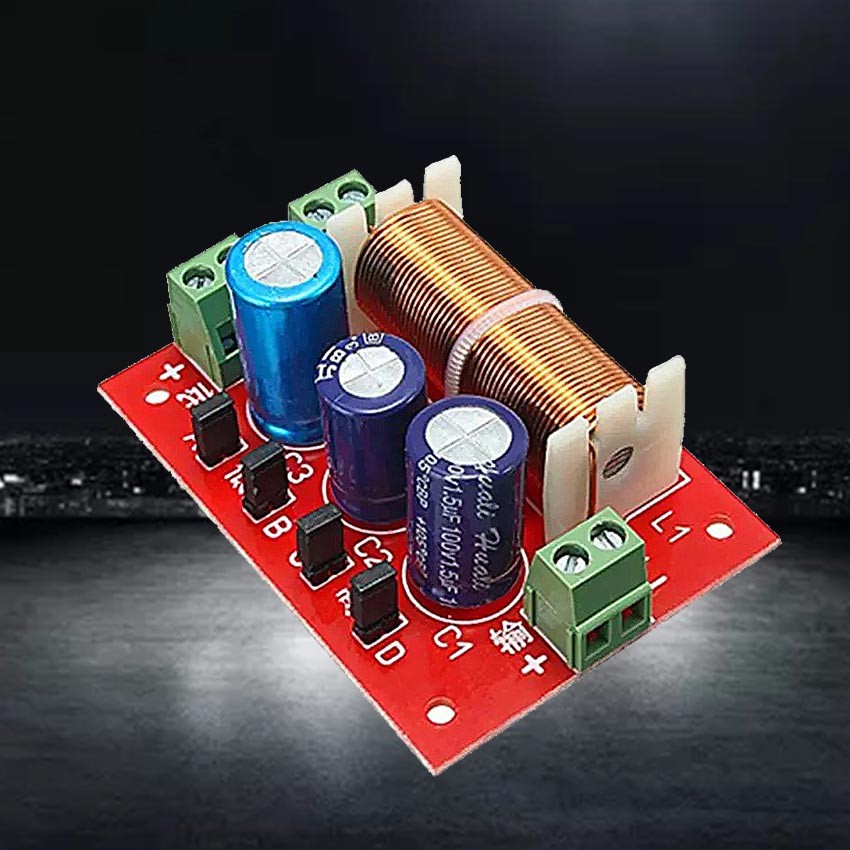

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter ₱249

₱249 ₱249
Buying Guide

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter


【Shipment】Your order will be shipped out within 24hrs from Manila;
【Courier】Grab Express--Recommended(Same day delivery); Black Arrow / X-Post(LBC) / Ninja Van

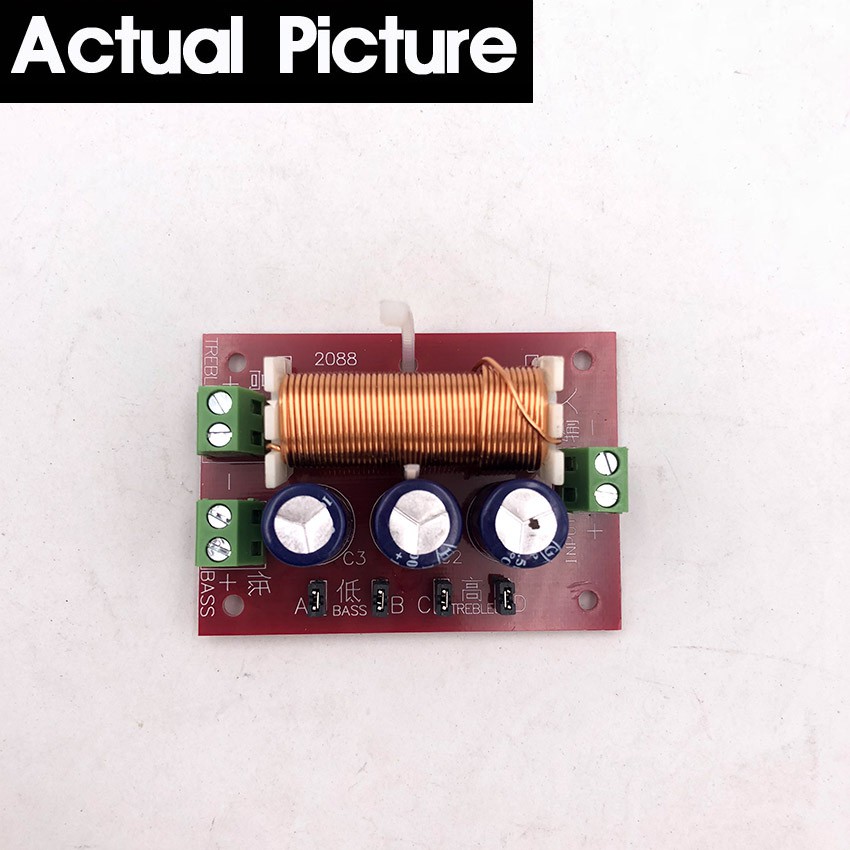

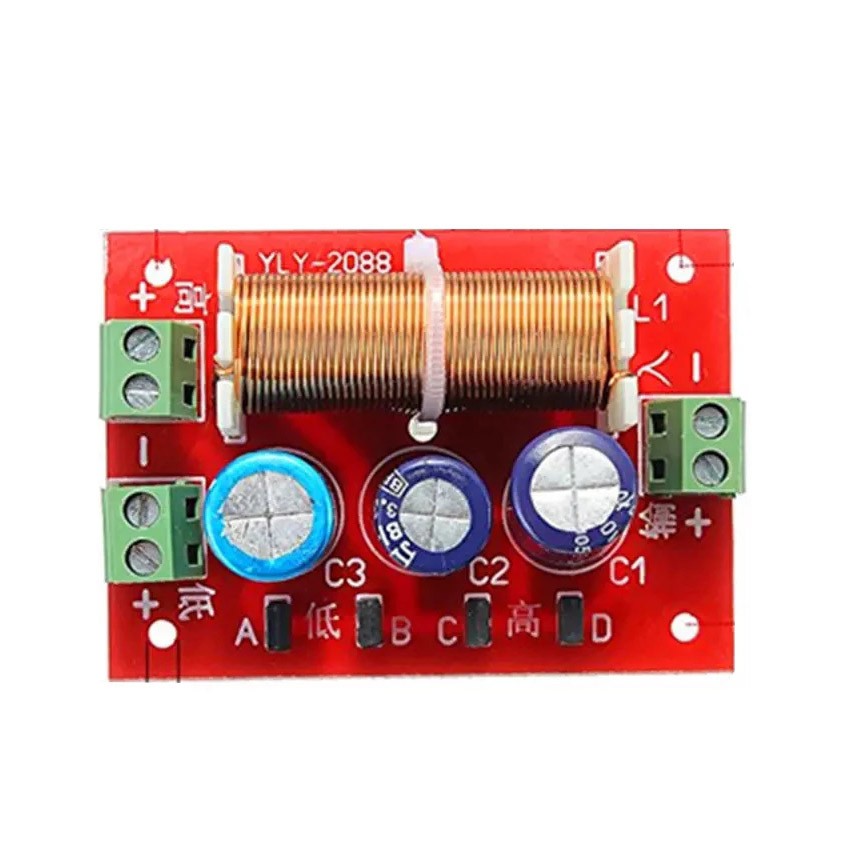

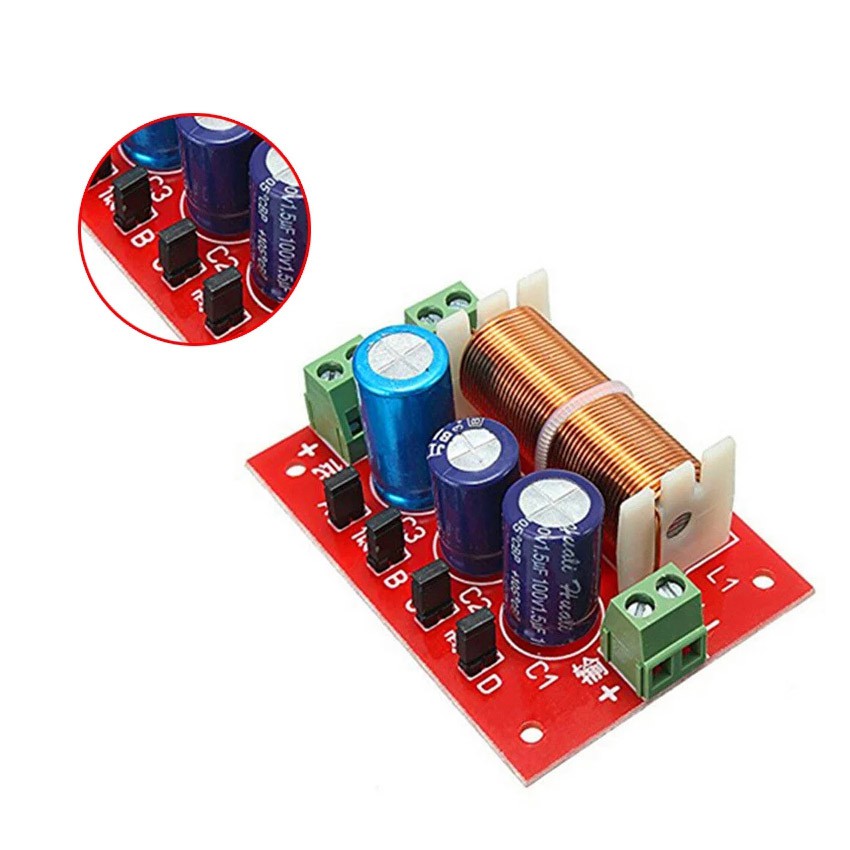

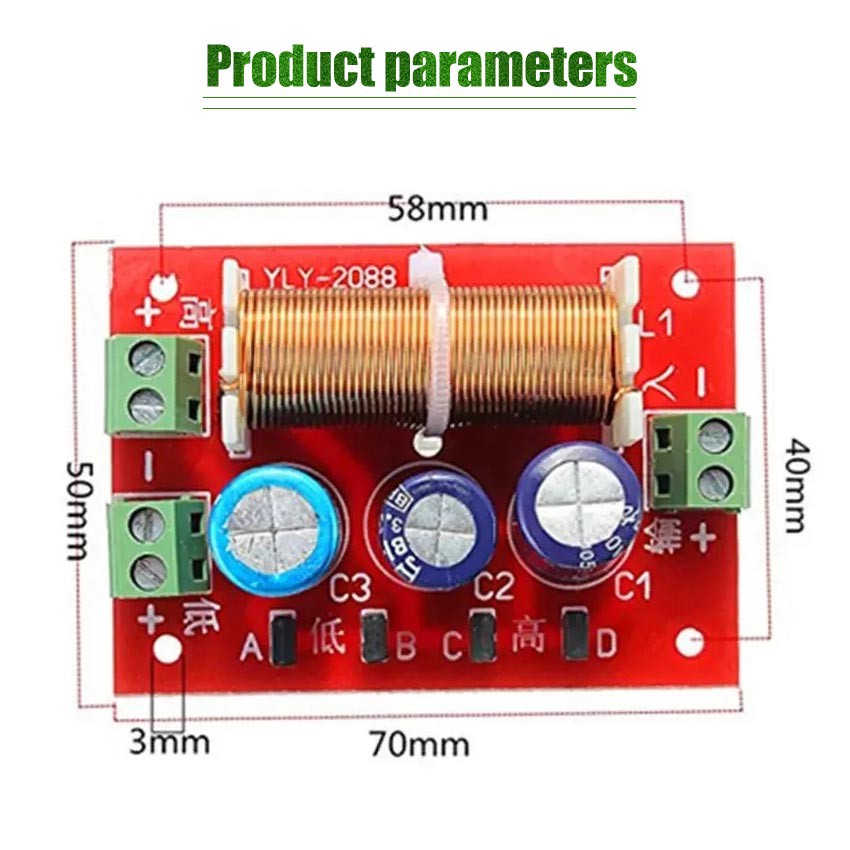

Jumper A, B are used to control audio effect of bass range

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter


For some speakers, when Bass is turned up too much, the speaker will show distortion
When we remove the cap of jumper B, Bass is increased while cap of Jumper B is on, Bass is decreased
When cap of both jumper C and D are on, the sound of treble is loudest

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter


When only cap D is on, further lower
(Generally speaking, with the four jumpers, you'd sooner or later find your best sound effect
How to use the splitter board:

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter


Normally we use jumper A and let B idle
A general formula is: A+D = better Bass; A+C = clear Treble and Bass; A+CD = clear Treble and Bass (the overall effect inclined towards Treble); AB+CD = more mediant frequency
Please optimize until you think the sound is best, and then fix the board with your speaker unit

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter


Resistance: 4-16ohm
Colour: motherboard red
Package Included

【Fast Delivery】400W Speaker Amplifier Audio Frequency Divider Crossover Audio Tweeter Bass Filter


Please allowed 1-5mm differences due to manual measurement, thanks
If you have any doubt , please feel free to contact with us~
