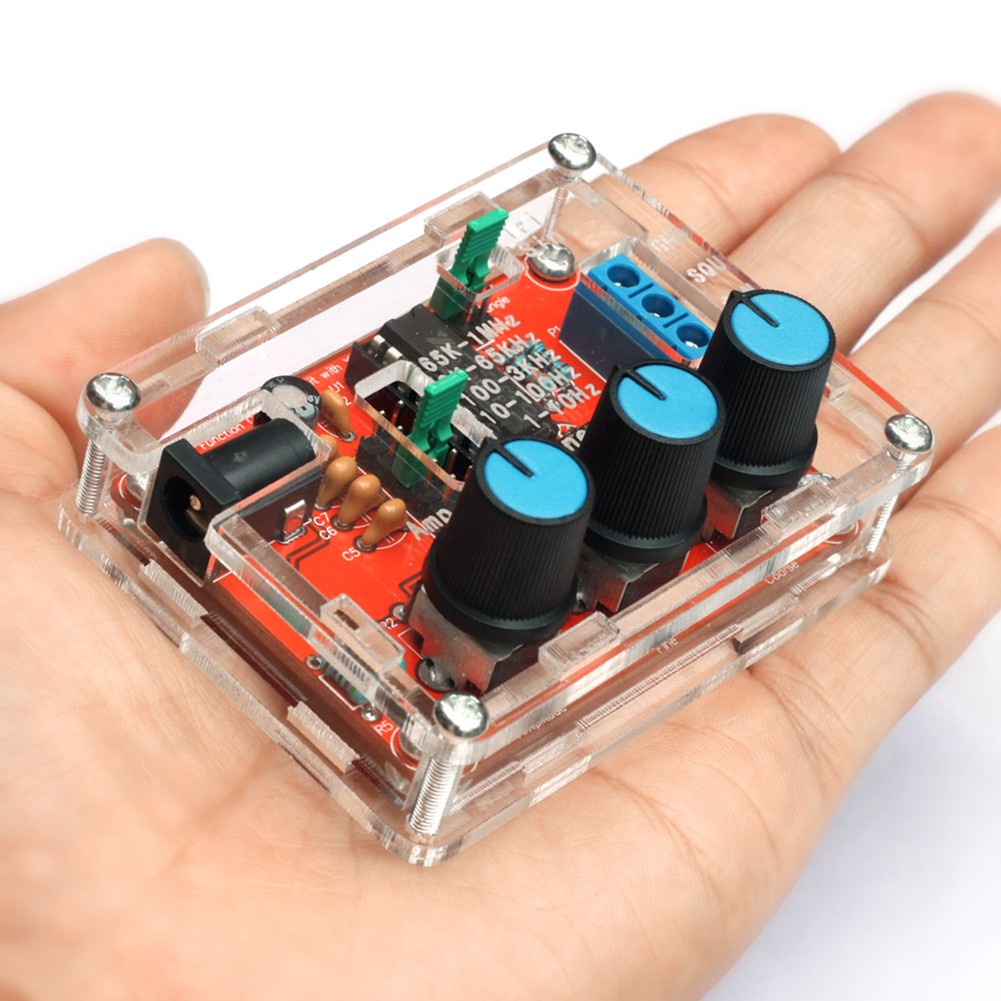

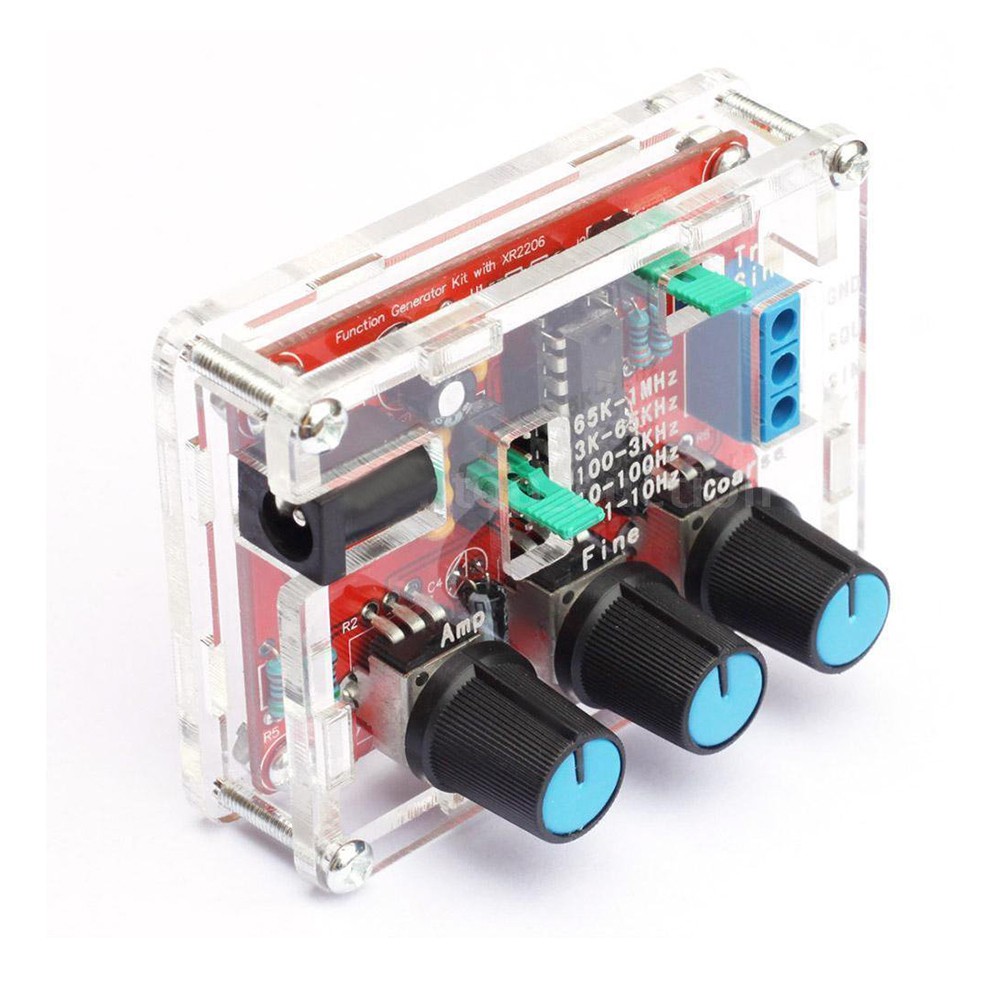

Signal Generator Kit Sine/Triangle/Square Output 1Hz-1MHz XR2206+ Arylic Shell ₱192

₱192 ₱400

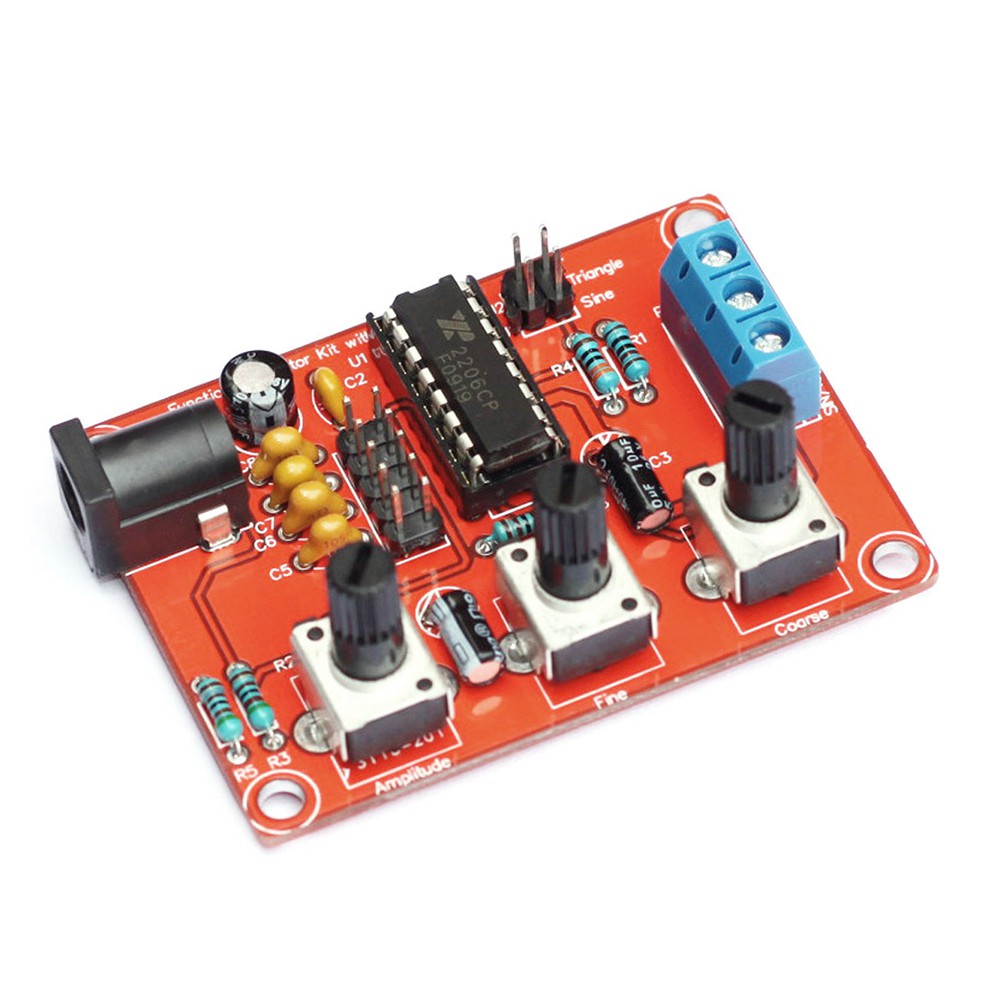

​The signal generator DIY kit is professional product to generate sine/triangle/square wave

Signal Generator Kit Sine/Triangle/Square Output 1Hz-1MHz XR2206+ Arylic Shell


Voltage Supply: 9-12V DC Input
Impedance: 600 Ohm + 10%

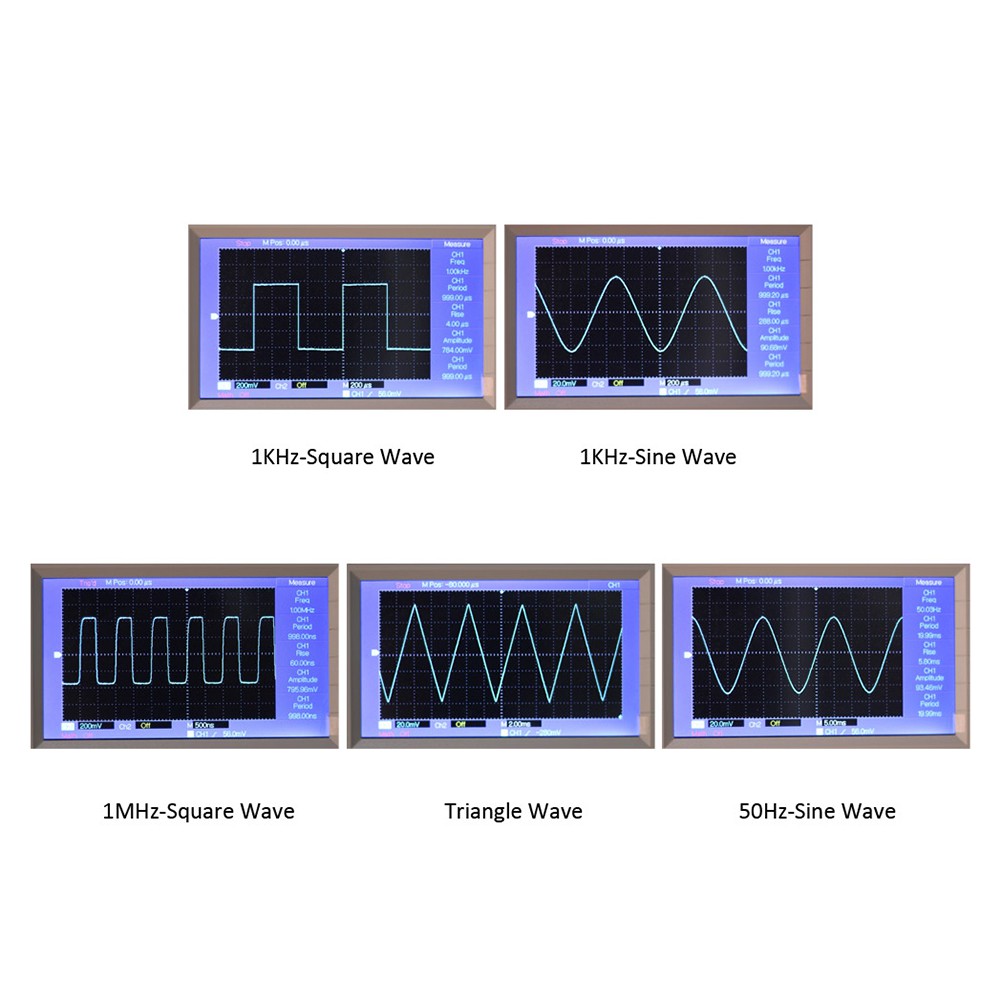

SINE WAVE

Signal Generator Kit Sine/Triangle/Square Output 1Hz-1MHz XR2206+ Arylic Shell


Distortion: Less than 1% (at 1KHz)
05dB 1Hz - 100kHz
Amplitude: 8V (no load) at 9V DC Input

Signal Generator Kit Sine/Triangle/Square Output 1Hz-1MHz XR2206+ Arylic Shell


Fall Time: Less than 30ns (at 1KHz)
TRIANGLE WAVE
Linearity: Less than 1% (up to 100KHz) 10mA

Signal Generator Kit Sine/Triangle/Square Output 1Hz-1MHz XR2206+ Arylic Shell

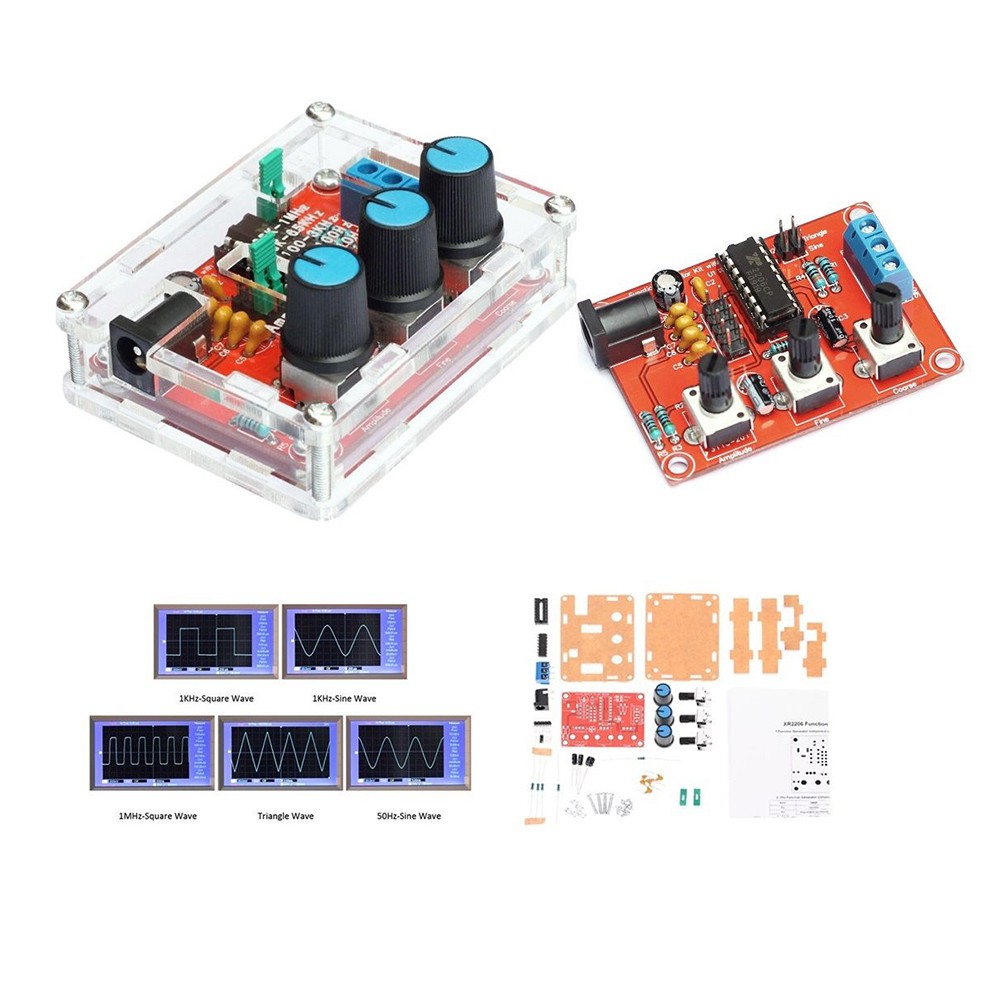

1 x Signal Generator DIY Kits
NO Retail Box
#Function #Signal #Generator #DIY #Kit #Sine/Triangle/Square #Output #1Hz-1MHz #XR2206+ #Arylic #Shell
